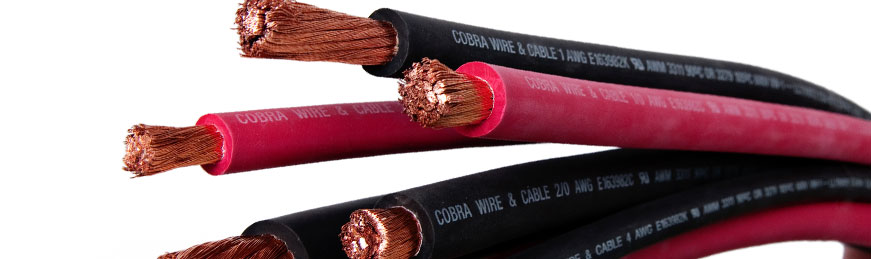

COBRA WIRE BATTERY SYSTEMS CABLE®

UL 3311 ZERO-HALOGEN

x flex image

DESCRIPTION

This specification covers the requirements for flexible single conductor motor lead and coil lead wire and meets the requirements of UL subject 758 and CSA C22.2 #210.2. This UL 3311 product is suitable for use as battery cable, welding cable, motor leads, and other DC power applications including the internal wiring of appliances and uninterruptible power supply systems. This cable is acid resistant and certified zero-halogen.


WARNING: California Proposition 65 - Cancer and Reproductive Harm
www.P65Warnings.ca.gov

STRANDING

Class K Bare Copper

STANDARD

UL 3311 & UL 3279

INSULATION

Cobra Battery Systems Cable is insulated with a thermoset EPDM insulation that has excellent abrasion resistance, strippability, flexibility and dielectric strength. It is also RoHS compliant.

VOLTAGE

600 Volts

TEMPERATURE

UL Style 3311 at 90°C
UL Style 3279 at 105°C

Cobra Part
Number		 Size Stranding Insulation
Thickness		 Nominal OD UL Style CSA AMPS Cable Weight
AWG Mils IN *90°C **105°C LBs/MFT
C9908B 8 133 X 29 0.060 0.29 UL 3311 & UL 3279 CL 905 83 92 84
C9906B 6 259 X 30 0.080 0.375 UL 3311 & UL 3279 CL 905 105 118 136
C9904B 4 420 X 30 0.080 0.43 UL 3311 & UL 3279 CL 905 140 157 189
C9902B 2 665 X 30 0.080 0.495 UL 3311 & UL 3279 CL 905 190 213 288
C9901B 1 836 X 30 0.095 0.565 UL 3311 & UL 3279 CL 905 220 246 348
C9910B 1/0 1064 X 30 0.095 0.615 UL 3311 & UL 3279 CL 905 260 291 444
C9920B 2/0 1330 X 30 0.095 0.664 UL 3311 & UL 3279 CL 905 300 336 551
C9930B 3/0 1672 X 30 0.095 0.719 UL 3311 & UL 3279 CL 905 350 392 663
C9940B 4/0 2109 X 30 0.095 0.785 UL 3311 & UL 3279 CL 905 405 454 820
C4925B 250 MCM 2451 X 30 0.095 0.806 UL 3311 only CL 905 455 510 970
*Allowable Ampacities of Single Insulated Conductors, per NEC table 310-17 Cable manufactured in accordance with Federal EPA Rule, Title 40-part 82, (ODC’s)
**The 105°C cable ampacities are adapted from ICEA P-54-440/NEMA WC51- 1986(R1991). The ampacities are provided for informational purposes only. Acceptance of these values by any governing authority is the responsibility of the end user. Ampacities are based on a single conductor, in free air, at 30°C ambient air temperature.

Need Lugs? Click here to see lugs for Battery Systems Cable

Print Legend
CoBRa WIRE & CaBlE aWg SIZE E NumBER Ru aWm 3311 90°C oR 3279 105°C 600V VW-1 CSa NumBER Cl905 90°C 600V RoHS ComPlIaNT


UL Recognized CSA CSA
