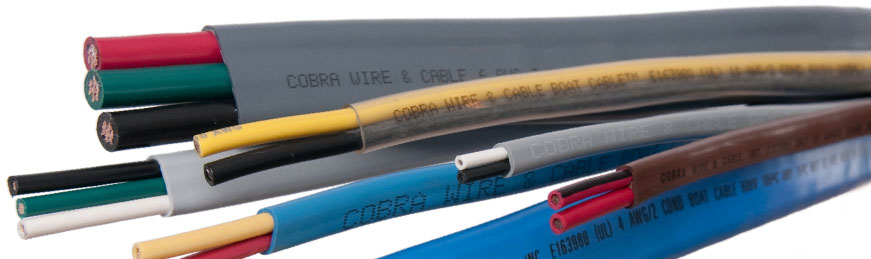

COBRA WIRE & CABLE BOAT CABLE^®

FLAT MULTI CONDUCTOR MARINE CABLE
MEETING UL & ABYC STANDARDS

This specification covers the requirements for flexible multi conductor tinned copper, flame retardant boat cable. Cobra boat cable meets or exceeds ABYC, UL, Coast Guard requirements. Cable is rated at 105°C, 75°C wet (BC-5W2) 600 Volt UL 1426 for AC and DC circuits.

Class K 30 Gauge Tinned Copper

UL 1426
UL Listed BC-5W2

This product offers a unique flame retardant polyvinyl chloride compound (VW-1), and is moisture, abrasion, acid, diesel fuel and oil resistant. It is extremely flexible and easy to work with.

600 Volts

105°C dry, 75°C wet

Cobra Part Number	Size	Conductors	Stranding	Insulation	Nominal OD	Cable Weight
	AWG				IN	LBs/MFT
B7W16T-XX	16	2	26 X 30	0.030	.192 X .319	51
B7G16T-XX	16	2	26 X 30	0.030	.192 X .319	51
B7W16T-XX	16	3	26 X 30	0.030	.187 X .433	70
B7G16T-XX	16	3	26 X 30	0.030	.187 X .433	70
B7W14T-XX	14	2	41 X 30	0.030	.215 X .350	65
B7G14T-XX	14	2	41 X 30	0.030	.215 X .350	65
B7W14T-XX	14	3	41 X 30	0.030	.223 X .500	93
B7G14T-XX	14	3	41 X 30	0.030	.223 X .500	93
B7W12T-XX	12	2	65 X 30	0.030	.230 X .381	92
B7G12T-XX	12	2	65 X 30	0.030	.230 X .381	92
B7W12T-XX	12	3	65 X 30	0.030	.230 X .528	128
B7G12T-XX	12	3	65 X 30	0.030	.230 X .528	128
B7W10T-XX	10	2	105 X 30	0.030	.250 X .430	138
B7G10T-XX	10	2	105 X 30	0.030	.250 X .430	138
B7W10T-XX	10	3	105 X 30	0.030	.270 X .620	179
B7G10T-XX	10	3	105 X 30	0.030	.270 X .620	179
B7W82T-XX	8	2	133 X 29	0.045	.362 X .607	230
B7G82T-XX	8	2	133 X 29	0.045	.362 X .607	230
B7W82T-XX	8	3	133 X 29	0.045	.363 X .885	320
B7G82T-XX	8	3	133 X 29	0.045	.363 X .885	320
B7W62T-XX	6	2	133 X 29	0.060	.436 X .772	364
B7G62T-XX	6	2	133 X 29	0.060	.436 X .772	364
B7W63T-XX	6	3	133 X 29	0.060	.450 X 1.080	523
B7G63T-XX	6	3	133 X 29	0.060	.450 X 1.080	523
W=White, G=Gray
