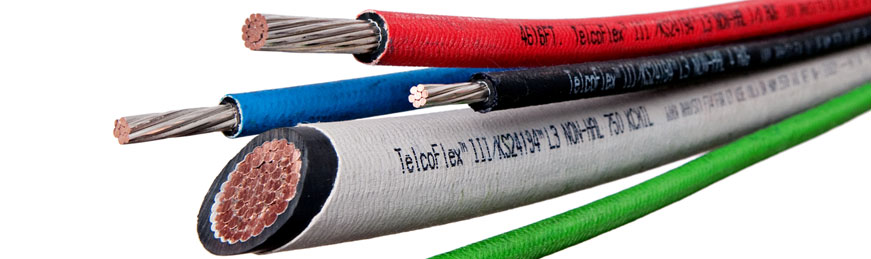

TELCOFLEX® III
Central Office Power Wire and Cable
Class B Stranded With Braid
DESCRIPTION
Low Smoke, Non-Halogenated Insulation, Lead-Free and Silicone-Free, UL Central Office Power Cable with Cotton Braid. 105°C Dry as AWM, 60°C Wet; UL Listed RHH/ST1 90°C Dry and VW-1, 600 Volts DC or AC. Sizes 1/0 AWG and larger are UL Listed for CT USE. CSA AWM I B 105°C 600 Volt FT4.
SCOPE
This specification covers the construction requirements for low smoke, non-halogenated central office power wire and cable, insulated with Southwire TelcoHyde®. UL listed Type RHH/ST1 with cotton braid for use in accordance with the National Electrical Code. The construction of the wire and cable is in accordance with Telcordia GR-347-CORE and ATIS-0600017.2014, Underwriters Laboratories requirements, and the requirements of CSA for the FT4 flame test. Sizes 1/0 AWG and larger are UL "CT Use" (Cable Tray) rated. Meets IEC including 60674 & 60332 and REACH – European Community Regulation.
CONSTRUCTION
Size: 14 AWG through 750KCMIL Single Conductor
Conductors: Class B stranded, tin-coated copper conforming to ASTM B-33 and Underwriters Laboratories requirements. An opaque Mylar tape shall be applied over the conductor to facilitate stripping.
Insulation: 105°C rated low smoke, non-halogen TelcoHyde® conforming to Underwriters Laboratories Standard 44, Subjects 509 and 758, and CSA C22.2 No. 210-11. In addition, TelcoHyde® complies with the requirements of Telcordia Specification GR-347-CORE. The insulation has a Limiting Oxygen Index of 35%.
Separator: On sizes 6 AWG and larger, a 1 mil clear Mylar tape shall be applied over the insulation.
Covering and Finisher On all sizes, a natural cotton braid conforming to UL Standard 44 requirements is applied overall. A section of completed cable has a Limiting Oxygen Index of 35%. A moisture resistant, fire retardant saturant and a colored finisher are applied to the braid.
Surface Marking: Two sides of the cable shall be printed using an ink of a contrasting color and with the following information: "SOUTHWIRE AIW™ CORD BRAND TELCOFLEX® III/KS24194™ L3 NON-HAL (UL) E18321 SIZE (AWG or KCMIL) 600 VOLTS RHH ST1 FT4 OR AWM 3578 60°C WET VW-1 — LL8825 CSA AWM I B 105°C 600 VOLTS FT4 YEAR TIME JULIAN DATE — MEETS IEC INCLUDING 60674 & 60332" Add "FOR CT USE" before "(AWM3578)”"on Sizes 1/0 AWG and larger. Sequential footage markings shall be applied at 2 foot intervals on one side of the cable.
Testing: Physical and electrical tests in accordance with the requirements of UL Standard 44, Subject 509 and 758, and CSA Standard C22.2 No. 210-11 as AWM.
Labels: UL and CSA tags and labels shall be applied to all packages.
CABLE DATA
Size
Stranding
Nominal
CMA
Conductor
Diamter
Insulation Min
Avg Walls
Nominal Insulation
Diameter
Nominal OD
Over Braid
MAX. DC
RES
@ 20°C
Ampacity per
NEC Table
310.15 (B)(16)
AWG
In
Mils
In
In
Ohms/MFT
75°C
90°C
14
7/.0247"
4410
.0708
45
.164
.226
2.730
20
25
12
7/.0311"
6530
.0892
45
.182
.244
1.720
25
30
10
7/.0392"
10380
.1130
45
.210
.272
1.080
35
40
8
7/.0495"
16510
.1420
60
.265
.327
.6795
50
55
6
7/.0624"
26240
.1780
60
.304
.370
.4376
65
75
4
7/.0787"
41740
.2250
60
.348
.414
.2689
85
95
2
7/.0992"
66360
.2830
60
.406
.482
.1691
115
130
1/0
19/.0760"
105600
.3620
80
.530
.606
.1063
150
170
2/0
19/.0853"
133100
.4050
80
.579
.651
.08432
175
195
4/0
19/.1076"
211600
.5120
80
.688
.756
.05248
230
260
350 MCM
37/.0991"
350000
.6610
95
.854
.930
.03206
310
350
500 MCM
37/.1185"
500000
.7900
95
.983
1.059
.02222
380
430
750 MCM
61/.1130"
750000
.9680
110
1.200
1.276
.01481
475
535
SOUTHWIRE AIW™ CORE BRAND TElCOFlEX™ III KS24194™ l3 NoN Hal SIZE aWg 600V RHH ST1 FT4 (ul) oR aWm 3578 60°C WET VW-1 E NumBER CSa NumBER CSa aWm IB 105°C 600V FT4 YEaR (SIZES oVER 1/0 INCluDE “FoR CT uSE”)
TELCOFLEX® is a registered trademark of Southwire. TelcoHyde™ is a trademark of Southwire.
KS24194™ is a trademark of General Electric Corporation.
Low Smoke, Non-Halogenated Insulation, Lead-Free and Silicone-Free, UL Central Office Power Cable with Cotton Braid. 105°C Dry as AWM, 60°C Wet; UL Listed RHH/ST1 90°C Dry and VW-1, 600 Volts DC or AC. Sizes 1/0 AWG and larger are UL Listed for CT USE. CSA AWM I B 105°C 600 Volt FT4.
This specification covers the construction requirements for low smoke, non-halogenated central office power wire and cable, insulated with Southwire TelcoHyde®. UL listed Type RHH/ST1 with cotton braid for use in accordance with the National Electrical Code. The construction of the wire and cable is in accordance with Telcordia GR-347-CORE and ATIS-0600017.2014, Underwriters Laboratories requirements, and the requirements of CSA for the FT4 flame test. Sizes 1/0 AWG and larger are UL "CT Use" (Cable Tray) rated. Meets IEC including 60674 & 60332 and REACH – European Community Regulation.
Size: 14 AWG through 750KCMIL Single Conductor
Conductors: Class B stranded, tin-coated copper conforming to ASTM B-33 and Underwriters Laboratories requirements. An opaque Mylar tape shall be applied over the conductor to facilitate stripping.
Insulation: 105°C rated low smoke, non-halogen TelcoHyde® conforming to Underwriters Laboratories Standard 44, Subjects 509 and 758, and CSA C22.2 No. 210-11. In addition, TelcoHyde® complies with the requirements of Telcordia Specification GR-347-CORE. The insulation has a Limiting Oxygen Index of 35%.
Separator: On sizes 6 AWG and larger, a 1 mil clear Mylar tape shall be applied over the insulation.
Covering and Finisher On all sizes, a natural cotton braid conforming to UL Standard 44 requirements is applied overall. A section of completed cable has a Limiting Oxygen Index of 35%. A moisture resistant, fire retardant saturant and a colored finisher are applied to the braid.
Surface Marking: Two sides of the cable shall be printed using an ink of a contrasting color and with the following information: "SOUTHWIRE AIW™ CORD BRAND TELCOFLEX® III/KS24194™ L3 NON-HAL (UL) E18321 SIZE (AWG or KCMIL) 600 VOLTS RHH ST1 FT4 OR AWM 3578 60°C WET VW-1 — LL8825 CSA AWM I B 105°C 600 VOLTS FT4 YEAR TIME JULIAN DATE — MEETS IEC INCLUDING 60674 & 60332" Add "FOR CT USE" before "(AWM3578)”"on Sizes 1/0 AWG and larger. Sequential footage markings shall be applied at 2 foot intervals on one side of the cable.
Testing: Physical and electrical tests in accordance with the requirements of UL Standard 44, Subject 509 and 758, and CSA Standard C22.2 No. 210-11 as AWM.
Labels: UL and CSA tags and labels shall be applied to all packages.
| Size | Stranding | Nominal CMA | Conductor Diamter | Insulation Min Avg Walls | Nominal Insulation Diameter | Nominal OD Over Braid | MAX. DC RES @ 20°C | Ampacity per NEC Table 310.15 (B)(16) | |
|---|---|---|---|---|---|---|---|---|---|
| AWG | In | Mils | In | In | Ohms/MFT | 75°C | 90°C | ||
| 14 | 7/.0247" | 4410 | .0708 | 45 | .164 | .226 | 2.730 | 20 | 25 |
| 12 | 7/.0311" | 6530 | .0892 | 45 | .182 | .244 | 1.720 | 25 | 30 |
| 10 | 7/.0392" | 10380 | .1130 | 45 | .210 | .272 | 1.080 | 35 | 40 |
| 8 | 7/.0495" | 16510 | .1420 | 60 | .265 | .327 | .6795 | 50 | 55 |
| 6 | 7/.0624" | 26240 | .1780 | 60 | .304 | .370 | .4376 | 65 | 75 |
| 4 | 7/.0787" | 41740 | .2250 | 60 | .348 | .414 | .2689 | 85 | 95 |
| 2 | 7/.0992" | 66360 | .2830 | 60 | .406 | .482 | .1691 | 115 | 130 |
| 1/0 | 19/.0760" | 105600 | .3620 | 80 | .530 | .606 | .1063 | 150 | 170 |
| 2/0 | 19/.0853" | 133100 | .4050 | 80 | .579 | .651 | .08432 | 175 | 195 |
| 4/0 | 19/.1076" | 211600 | .5120 | 80 | .688 | .756 | .05248 | 230 | 260 |
| 350 MCM | 37/.0991" | 350000 | .6610 | 95 | .854 | .930 | .03206 | 310 | 350 |
| 500 MCM | 37/.1185" | 500000 | .7900 | 95 | .983 | 1.059 | .02222 | 380 | 430 |
| 750 MCM | 61/.1130" | 750000 | .9680 | 110 | 1.200 | 1.276 | .01481 | 475 | 535 |
TELCOFLEX® is a registered trademark of Southwire. TelcoHyde™ is a trademark of Southwire.
KS24194™ is a trademark of General Electric Corporation.
