COBRA WIRE & CABLE BOAT CABLE®

ROUND MULTI CONDUCTOR MARINE CABLE
MEETING UL & ABYC STANDARDS

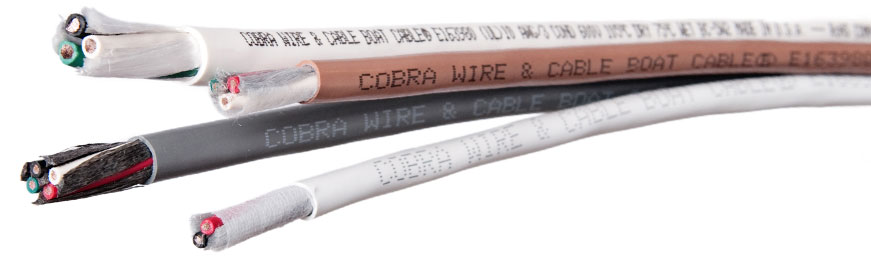

flat boat cable image

DESCRIPTION

This specification covers the requirements for flexible multi conductor tinned copper flame retardant boat cable. Cobra boat cable meets or exceeds ABYC, UL, Coast Guard requirements. Cable is rated at 105oC, 75°C wet (BC-5W2) 600 Volt UL 1426 for AC & DC circuits.


WARNING: California Proposition 65 - Cancer and Reproductive Harm
www.P65Warnings.ca.gov

STRANDING

Class K 30 Gauge Tinned Copper

STANDARD

UL 1426
UL Listed BC-5W2

INSUlATION

This product offers a unique flame retardant polyvinyl chloride compound (VW-1), and is moisture, abrasion, acid, diesel fuel and oil resistant. It is extremely flexible & easy to work with.

VOlTAGE

600 Volts

TEMPERATURE

105°C dry, 75°C wet

Cobra Part
Number		 Size Conductors Stranding Insulation Nominal OD Cable Weight
AWG IN LBs/MFT
B6W16T-XX 16 2 26 X 30 0.030 .313 49
B6G16T-XX 16 2 26 X 30 0.030 .313 49
B6W16T-XX 16 3 26 X 30 0.030 .333 64
B6G16T-XX 16 3 26 X 30 0.030 .333 64
B6W16T-XX 16 4 26 X 30 0.030 .366 80
B6G16T-XX 16 4 26 X 30 0.030 .366 80
B6W16T-XX 16 5 26 X 30 0.030 .399 95
B6G16T-XX 16 5 26 X 30 0.030 .399 95
B6W16T-XX 16 6 26 X 30 0.030 .436 111
B6G16T-XX 16 6 26 X 30 0.030 .436 111
B6W14T-XX 14 2 41 X 30 0.030 .349 66
B6G14T-XX 14 2 41 X 30 0.030 .349 66
B6W14T-XX 14 3 41 X 30 0.030 .393 89
B6G14T-XX 14 3 41 X 30 0.030 .393 89
B6G14T-XX 14 4 41 X 30 0.030 .408 109
B6W14T-XX 14 4 41 X 30 0.030 .408 109
B6W14T-XX 14 5 41 X 30 0.030 .458 132
B6G14T-XX 14 5 41 X 30 0.030 .458 132
B6W14T-XX 14 6 41 X 30 0.030 .488 153
B6G14T-XX 14 6 41 X 30 0.030 .488 153
B6G12T-XX 12 2 65 X 30 0.030 .409 98
B6W12T-XX 12 2 65 X 30 0.030 .409 98
B6G12T-XX 12 3 65 X 30 0.030 .434 128
B6W12T-XX 12 3 65 X 30 0.030 .434 128
B6G12T-XX 12 4 65 X 30 0.030 .476 160
B6W12T-XX 12 4 65 X 30 0.030 .476 160
B6W12T-XX 12 5 65 X 30 0.030 .523 191
B6G12T-XX 12 5 65 X 30 0.030 .523 191
B6W10T-XX 10 2 105 X 30 0.030 .467 138
B6G10T-XX 10 2 105 X 30 0.030 .467 138
B6G10T-XX 10 3 105 X 30 0.030 .497 184
B6W10T-XX 10 3 105 X 30 0.030 .497 184
B6G10T-XX 10 4 105 X 30 0.030 .555 232
B6W10T-XX 10 4 105 X 30 0.030 .555 232
B6W10T-XX 10 5 105 X 30 0.030 .616 496
B6G10T-XX 10 5 105 X 30 0.030 .616 496
B6G8T-XX 8 4 133 X 28 0.045 .768 386
B6W8T-XX 8 4 133 X 28 0.045 .768 386
B6G6T-XX 6 4 266 X 30 0.060 .975 700
W=White, G=Gray



Print Legend
CoBRa WIRE & CaBlE BoaT CaBlE® E NumBER (ul) aWg SIZE # oF CoND 600V 105°C DRY 75°C WET BC5W2 maDE IN uSa RoHS ComPlIaNT


UL Listed CSA
